MEET THE COMPACT / 1.69″
More connected to your car.
Less space on your dash.
Your vehicle’s vitals in a focused, pocket-size display. A compact, non-GPS companion with luminous gauges—and a Corvette C7 edition that puts NPP exhaust control at your fingertips.
COMING SOON · AIR / FUEL DESIGN PREVIEW
INTERACTIVE WEB PREVIEW · SIMULATED READINGS
Gauge selection and data support depend on the vehicle build.
COMING TO THE COMPACT / 1.69″
The Air / Fuel family is growing.
We’re bringing the same clear, illuminated mixture display to the compact 1.69-inch model. The planned page uses a large gasoline-equivalent AFR number with rich-blue, stoichiometric-white and lean-amber lighting.
DESIGN PREVIEW · COMPACT FIRMWARE IN DEVELOPMENT
The interactive preview above is sized for the 240 × 280 display. It shows the intended visual design; AFR is not yet part of the current C7 firmware.
Vehicle sensor support and compact implementation will be verified before release. The round-gauge version uses the average of both measured bank lambda readings × 14.7; missing or stale data shows dashes.
Explore the round Air / Fuel display ↗01 / CHOOSE YOUR CHARACTER
The compact family focuses on the car. Choose vehicle information, or the dedicated Corvette C7 build with exhaust controls alongside its gauges.
A 1.69-inch display for supported vehicle readings over Bluetooth LE OBD. Made for a smaller installation, with no GPS or location pages.
The C7 build combines boost/vacuum, intake-air temperature and oil pressure with a dedicated NPP exhaust page. Tap Open or Close to select the exhaust request.
02 / THE CORVETTE C7 EDITION
The exhaust controls.
One touch away.
Select Open or Close on the NPP page. Then swipe back to your gauges while the device continues the selected request.
Try the buttons on this preview. The illuminated face follows your selection, just like the visual language of the actual C7 build.
WEB SIMULATION · NO VEHICLE CONNECTION
For the C7 build and compatible NPP-equipped cars. On-screen acknowledgement describes the command response, not measured valve position. The latest combined firmware is still undergoing vehicle validation; other C7 configurations need confirmation.

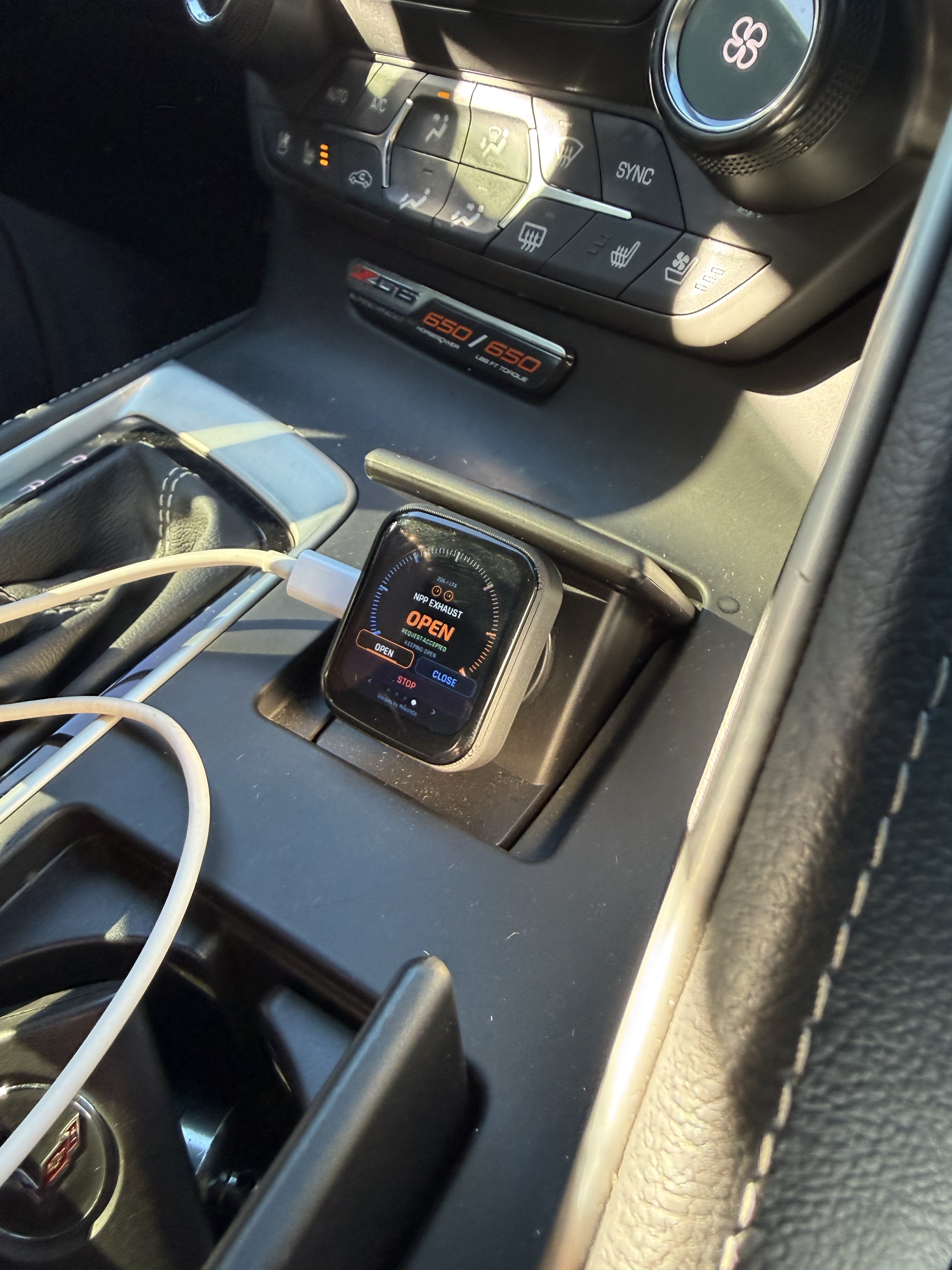

OWNER’S C7 Z06 / ACTUAL INSTALL03 / FIND ITS PLACE
On the console.
Or at the vent.
A compact mounting option using the cigarette-lighter socket area. The C7 installation shown sits neatly in the factory center-console compartment.
Place the display at a compatible air vent with the clip mount. A second way to keep the compact gauge in reach.
USB-C supplies the display’s power. Mount fit depends on the socket, vent shape and available clearance; choose the adapter that suits your cabin.
04 / UNDER THE SMALL SCREEN
Built around the original Waveshare ESP32-S3-Touch-LCD-1.69, with a 240 × 280 display. The C7 reference setup uses a KONNWEI KW901 BLE adapter.
This is the smaller, rectangular 1.69-inch LCD model for vehicle data. It does not include GPS, location tracking or restaurant-finder pages. The round 1.75-inch AMOLED model is the GPS-focused option.
Boost/vacuum, intake-air temperature and oil pressure, plus the NPP exhaust-control page. Intake air is the standard reported temperature, not a verified post-intercooler IAT2 reading. Oil pressure uses a calibration developed for the reference Z06; other vehicles need their own validation.
The controller is developed around a 2016 C7 Z06 with NPP exhaust and the specified BLE adapter. Compatibility with other cars, adapters and exhaust configurations must be confirmed. It does not add valves to a car without NPP.
This is a product showcase and project preview. Pricing, ordering and a complete compact-build release are not available on this website yet.
